BNC オス コネクタ、圧着/はんだ接続、PE-B150、RG180、RG195

製品ID: PE4247

数量別価格

数量単価
1-24¥4,456
25-49¥4,233
50-99¥4,010
100-249¥3,832
250+Call

消費税込単価
数量:
在庫数:166
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency1 GHz
Interface Type 1PE-B150
Interface Type 2RG180
Interface Type 3RG195

Description

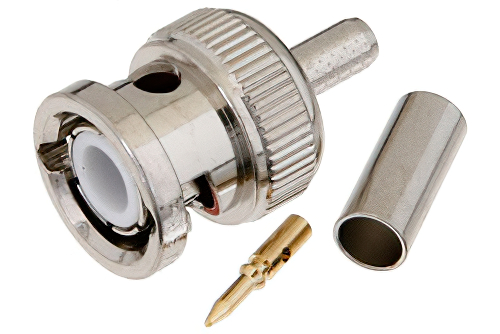

BNC Male Connector Crimp/Solder Attachment for PE-B150, RG180, RG195

PE4247 BNC male coaxial connector has an interface type of PE-B150, RG180, RG195 and a 50 Ohm impedance. Pasternack BNC male connector uses shield/contact crimp/solder as an attachment method. Our male BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 1 GHz.

The Pasternack BNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack BNC coaxial connector has a brass body with nickel plating. Our PE4247 BNC connector uses brass contact. This BNC male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male BNC connector will ship the same day as purchased. Our BNC male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
