75 Ω BNC オス 直角コネクタ、クランプ/はんだ接続、RG11、RG216、RG144

製品ID: PE4606

数量別価格

数量単価
1-24¥8,296
25-49¥7,715
50-99¥7,135
100-249¥6,637
250+Call

消費税込単価
数量:
在庫数:2,624
在庫限りで供給終了
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderMale
Impedance75 Ohm
Body StyleRight Angle
Attachment MethodClamp/Solder
Mount MethodNone
Interface Type 1RG11
Interface Type 2RG216
Interface Type 3RG144

Description

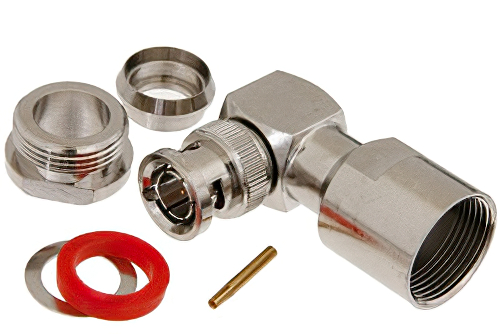

75 Ohm BNC Male Right Angle Connector Clamp/Solder Attachment for RG11, RG216, RG144

PE4606 BNC male right angle coaxial connector has an interface type of RG11, RG216, RG144 and a 75 Ohm impedance. Pasternack BNC male connector uses shield/contact clamp/solder as an attachment method.

The Pasternack right angle BNC male coaxial connector has a PTFE dielectric type. The Pasternack BNC coaxial connector has a brass body with nickel plating. Our PE4606 BNCright angle connector uses brass contact. This BNC male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male BNC connector will ship the same day as purchased. Our BNC right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
