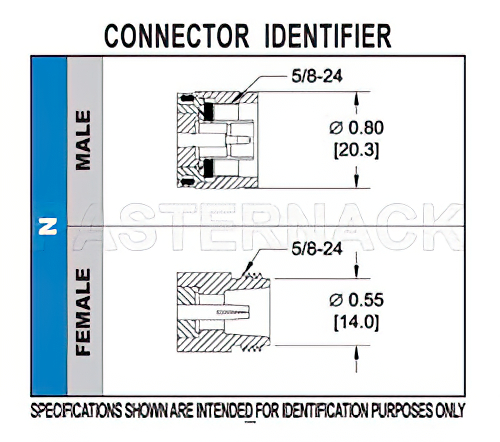

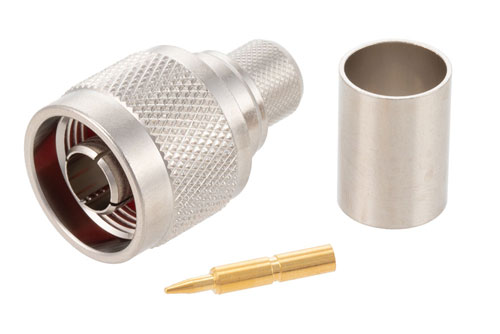

N オス コネクタ、圧着/はんだ接続、RG214、RG9、RG225、RG393

製品ID: PE4048

数量別価格

数量単価
1-24¥6,074
25-49¥5,770
50-99¥5,467
100-249¥5,224
250+Call

消費税込単価
数量:
在庫数:1,635
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1RG214
Interface Type 2RG9
Interface Type 3RG225
Interface Type 4RG393

Description

N Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

PE4048 type N male coaxial connector has an interface type of RG214, RG9, RG225, RG393 and a 50 Ohm impedance. Pasternack type N male connector uses shield/contact crimp/solder as an attachment method. Our male type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack N type male coaxial connector has a PTFE dielectric type and a VSWR of 1.5. The Pasternack N type coaxial connector has a brass body with nickel plating. Our PE4048 N type connector uses brass contact. This type N male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male type N connector will ship the same day as purchased. Our N type male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
