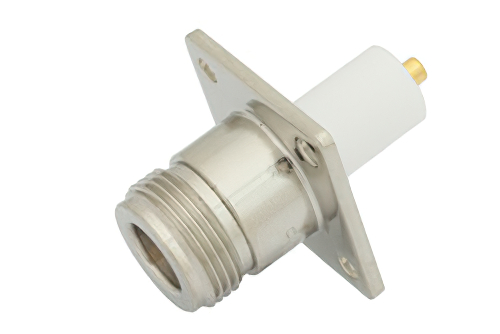

N メス コネクタ、はんだ接続、4ホールパネルマウント、ピンターミナル、.718インチ穴間隔

製品ID: PE4328

数量別価格

数量単価
1-24¥6,904
25-49¥6,559
50-99¥6,214
100-249¥5,937
250+Call

消費税込単価
数量:
在庫数:3,819
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount Method4 Hole Flange
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1Pin

Description

N Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .718 inch Hole Spacing

PE4328 type N female 4 hole flange terminal connector has an interface type of pin and a 50 Ohm impedance. Pasternack type N female 4 hole flange connector uses shield/contact solder as an attachment method. Our female type N terminal connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack N type female 4 hole flange terminal connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack N type terminal connector has a brass body with nickel plating. Our PE4328 N type connector uses brass contact. This type N female 4 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack female type N 4 hole flange connector will ship the same day as purchased. Our 4 hole flange N type female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
