Flexible Armored Test Cables up to 20 GHz New from Pasternack

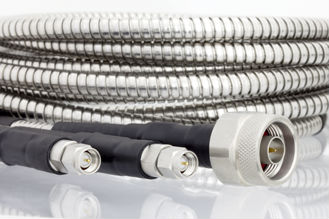

SMA and N Type Armored Test Cables



■ Designed for harsh, high traffic production environments

■ Operating frequencies up to 20 GHz

■ Stainless steel SMA and N connectors and armoring

■ Uses PE-P142LL coax, a flexible low loss cable

■ Triple-shielded coax with an expanded PTFE dielectric

■ Standard and metric lengths available

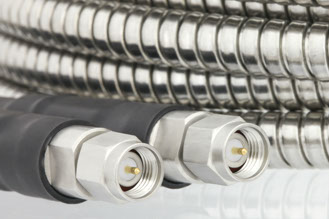

SMA Male to SMA Male Armored Test Cables

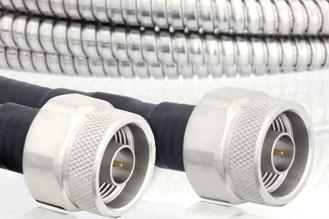

N Male to N Male Armored Test Cables

Pasternack Armored Test Cables



Pasternack’s armored test cables utilize stainless steel connector construction, with the SMA designed to operate to 20 GHz and the N connector to 18 GHz. These new RF test cables from Pasternack are available with in-series configurations only. A robust mechanical connector/armoring interface and strain relief boot increases the overall durability and life of the test cable. The company’s armored test cables are built using PE-P142LL coaxial cable which is triple shielded with an expanded PTFE dielectric, guaranteeing low loss performance.



These new SMA and N-Type armored test cables are manufactured with a flexible, but rugged stainless steel armoring which allows RF signal integrity during test, even when exposed to high traffic production environments. The armored coax used in Pasternack’s designs is more flexible than other commonly available armored cables and is specifically intended for continual bending and flexure without causing degradation to the signal.
