RG188-DS 同軸ケーブル

製品ID: RG188-DS
在庫限りで供給終了
代替品RG188-DS-BULK.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic NameRG188
Flex TypeFlexible
Impedance50 Ohm
Dielectric TypePTFE
Jacket Diameter0.118 in
Jacket MaterialPTFE
No. of Shields2
Attenuation at 1 Ghz.30 dB
Power, Max at 1 Ghz.160 Watts
Frequency, Max10 GHz
Max Operating Temperature200 deg C
Center Conductor TypeStranded
Inner Conductor, Number of Strands7
Coax TypeCoax

Description

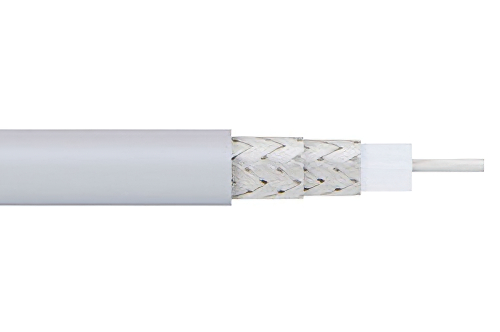

Flexible RG188 Coax Cable Double Shielded with White PTFE Jacket

RG188-DS part number from Pasternack is a RG188 coax cable that is flexible. Pasternack RG188-DS flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG188-DS coax is constructed with a 0.118 jacket made of PTFE. RG188-DS coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 10 GHz. RG188-DS coax cable has an attenuation at 1 GHz of 30 dB and a maximum power of 160 watts at 1 GHz.

Pasternack RG188 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG188-DS cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG188-DS or other coax can be built and shipped same day as well.
