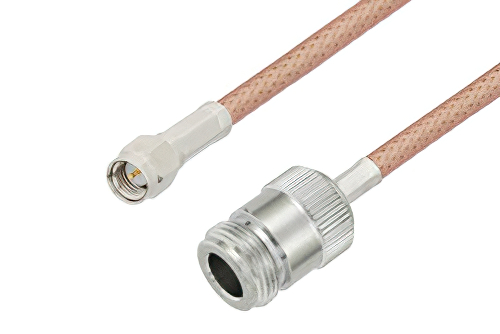

SMA オス〜 N メスケーブル、PE-P195 同軸

製品ID: PE3W00250

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-P195
RF Cable Type	PE-P195
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44203	PE-P195	PE44532	KitBOM Datasheet

SMA Male to N Female Cable Using PE-P195 Coax

PE3W00250 is a SMA male to N female cable using PE-P195 coax. This Pasternack SMA male to N female cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm N for connector 2.

Our male SMA to female N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W00250 SMA male to N female cable assembly is constructed with PE-P195 coax.
