SMA オス 〜 N メス バルクヘッドケーブル、PE-SR402FL 同軸、鉛フリーはんだ

製品ID: PE33996LF

長さ

*長さは0.25インチまたはcm単位で指定できます
*長さは0.25インチまたはcm単位で指定できます

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberPE-SR402FL
RF Cable TypePE-SR402FL
RF Cable Impedance50

Description

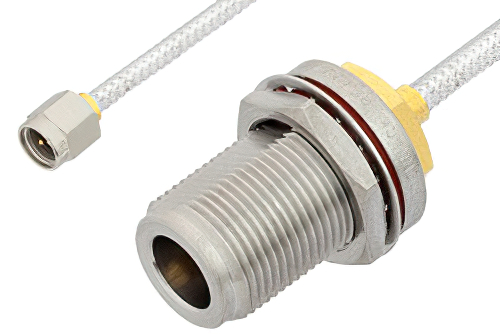

SMA Male to N Female Bulkhead Cable Using PE-SR402FL Coax, RoHS

PE33996LF is a SMA male to N type female bulkhead cable using PE-SR402FL coax. This Pasternack SMA male to N type female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our male SMA to female type N bulkhead cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE33996LF SMA male to type N female bulkhead cable assembly is constructed with PE-SR402FL coax and the maximum VSWR is 1.4:1.
