逆ネジ SMA メス 直角コネクタ、はんだ接続、スルーホールPCB、.200インチx.067インチ穴間隔

製品ID: PE44199

数量別価格

数量単価
1-24¥10,619
25-49¥10,088
50-99¥9,557
100-249¥9,132
250+Call

消費税込単価
数量:
在庫数:46
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Thread
Connector SeriesSMA
Connector GenderFemale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder
Mount MethodNone
Interface Type 1Thru Hole

Description

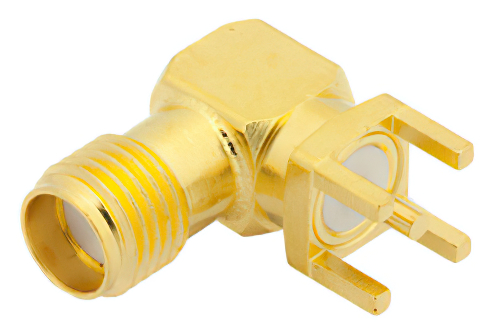

RT SMA Female Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

PE44199 reverse thread SMA female right angle pcb connector has an interface type of thru hole and a 50 Ohm impedance. Pasternack reverse thread SMA female connector uses shield/contact solder as an attachment method.

The Pasternack reverse thread right angle SMA female pcb connector has a PTFE dielectric type. The Pasternack SMA pcb connector has a brass body with gold plating. This reverse thread SMA female right angle pcb RF connector is RoHS and REACH compliant.

This Pasternack reverse thread right angle female SMA connector will ship the same day as purchased. Our SMA reverse thread right angle female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
