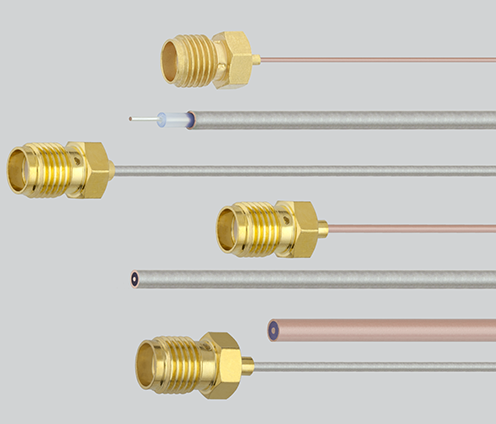

Pasternack’s semi-rigid test probes are offered in 3 different diameters of semi-rigid coax including 0.02 inch (0.51mm), 0.034 inch (0.86mm) and 0.047 inches (1.19mm). All test probe cable assemblies are 100% RF tested to ensure the cable assemblies operate to a maximum frequency of 6 GHz and to also ensure that the SMA connector interface meets the 1.35:1 VSWR specification prior to shipping. These assemblies come in 3, 6, 9 and 12 inch lengths and are designed to fit a variety of trace widths and applications. The probes are also terminated with female SMA connectors. The new semi-rigid test probes from Pasternack come in two versions including straight-cut probe ends for those that would like to customize the dimensions of the center conductor and dielectric dimensions, as well as pre-stripped probe ends (also called pig tail) that are ready for immediate use and do not require any additional stripping.
