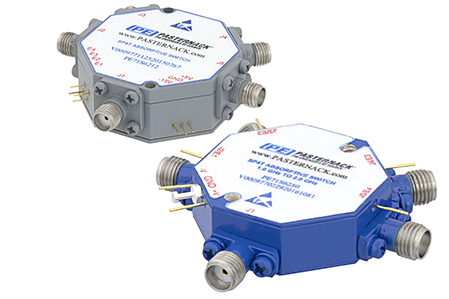

SP4T PIN Diode Switches from Pasternack Enterprises

All in-stock and available to ship the same day!

Pasternack offers 5 new models of Single Pole Four Throw (SP4T) Pin Diode Switches covering frequency bands from 1000 MHz to 18 GHz.  Designs feature excellent insertion loss as low as 1 dB, Isolation levels up to 75 dB, and fast switching speed levels as low as 100 nsec.  Models are available in MIL-Grade rugged coaxial packaging with integrated TTL compatible logic control circuitry and some models support field replaceable connectors.

SP4T PIN Diode Switches


Part No.

& Additional

Views

Switch
Design

Frequency
Range
(MHz)

Typical
Isolation

(dB)

Typical
Insertion
Loss (dB)

Typical
Switching
Time (ns)

Max RF Input
Power (CW)
(Watts)

TTL Control

Connector
Type

Field
Replaceable

SP4T PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA   PE71S6212

Absorptive

500-18,000

55

3.8

100

0.1

Solder Pin

SMA Female

Yes
  • descrSP4T PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA

SP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA   PE71S6250

Absorptive

1,000-2,000

60

1.2

100

0.1

Solder Pin

SMA Female

Yes
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA

SP4T PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +20 dBm and Field Replaceable SMA   PE71S6251

Absorptive

2,000-4,000

75

1.5

100

0.1

Solder Pin

SMA Female

Yes
  • descrSP4T PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +20 dBm and Field Replaceable SMA

SP4T PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA   PE71S6254

Absorptive

12,000-18,000

70

3.75

100

0.1

Solder Pin

SMA Female

Yes
  • descrSP4T PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA
  • descrSP4T PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and Field Replaceable SMA

SP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and SMA   PE71S6278

Reflective

1,000-2,000

60

1

100

0.1

Solder Pin

SMA Female

Yes
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and SMA
  • descrSP4T PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and SMA
