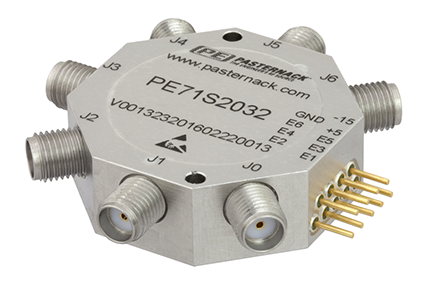

Pasternack's model PE71S2032 is a Single Pole Six Throw (SP6T) Pin Diode Switch that covers a frequency band from 100 MHz to 20 GHz. The Absorptive design features excellent isolation of 65 dB typical and fast switching speed of 75 nsec typical. The MIL-Grade rugged coaxial package design is compact and has integrated TTL compatible logic control circuitry.
SP6T PIN Diode Switches
Part No.
& Additional
Views
Switch
Design
Frequency
Range
(MHz)
Typical
Isolation
(dB)
Typical
Insertion
Loss (dB)
Typical
Switching
Time (ns)
Max RF Input
Power (CW)
(Watts)
TTL Control
Connector
Type
Field
Replaceable
 |
PE71S2032 | Absorptive |
100-20,000 |
65 |
4.2 |
75 |
0.5 |
Solder Pin |
SMA Female |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
