All in-stock and available to ship the same day!

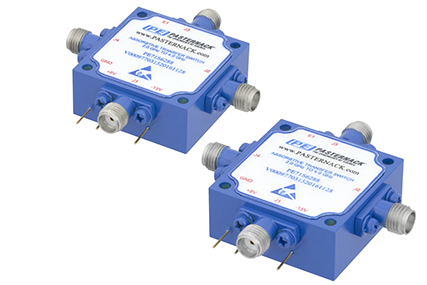

Pasternack offers 2 new models of Transfer Pin Diode Switches covering frequency bands from 1000 MHz to 4000 MHz. Designs feature excellent insertion loss as low as 1 dB, Isolation levels up to 80 dB, and fast switching speed levels of 100 nsec max. Models are available in MIL-Grade rugged coaxial packaging with integrated TTL compatible logic control circuitry.
TRANSFER PIN Diode Switches
Part No.
& Additional
Views
Switch
Design
Frequency
Range
(MHz)
Typical
Isolation
(dB)
Typical
Insertion
Loss (dB)
Typical
Switching
Time (ns)
Max RF Input
Power (CW)
(Watts)
TTL Control
Connector
Type
Field
Replaceable
 |
PE71S6287 | Absorptive |
1,000-2,000 |
80 |
1 |
100 |
1 |
Solder Pin |
SMA Female |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
PE71S6288 | Absorptive |
2,000-4,000 |
75 |
1.2 |
100 |
1 |
Solder Pin |
SMA Female |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click a category below for more details
Additional switches to explore
