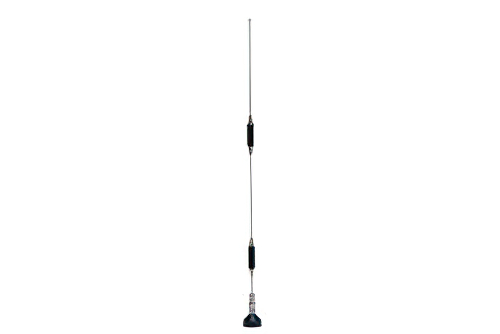

移動体アンテナ、Dual ½ wave over ¼ wave、835 MHzに同調; 824 - 896 MHZ

製品ID: PE51009

数量別価格

数量単価
1-24¥13,489
25-49¥12,815
50-99¥12,140
100-249¥11,601
250+Call

消費税込単価
数量:
在庫数:7
在庫限りで供給終了
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypeMobile
Minimum Frequency825 MHz
Maximum Frequency896 MHz
Connector SeriesNMO Mount
Impedance50 Ohm
Nominal Gain5 dB
Maximum Input VSWR1.5:1

Description

Wire Mobile Antenna Operates From 825 MHz to 896 MHz With a Nominal 5 dB Gain NMO Mount Input Connector

Mobile antenna PE51009 from Pasternack is part of our extensive in-stock omni-directional radio antenna selection. This single band mobile antenna has a frequency range of 825 MHz to 896 MHz and a 5 nominal dBi gain. Our mobile antenna uses NMO Mount input and is rated for 150 Watts input.

PE51009 mobile radio antenna is one of over 40,000 RF, microwave and millimeter wave components supplied from Pasternack. Our mobile aerial can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
