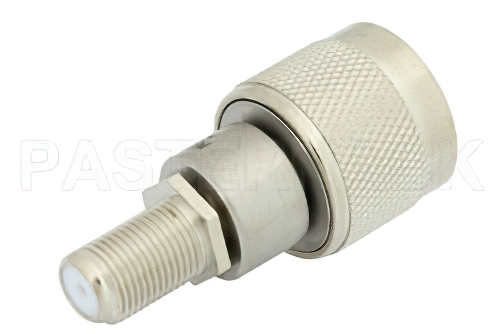

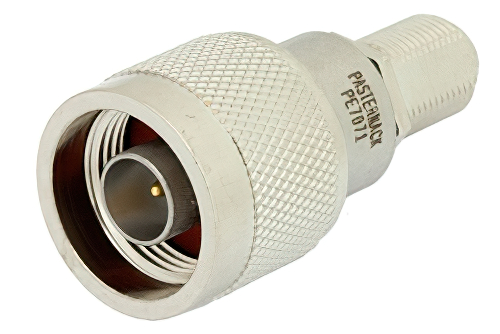

50 Ω N オス 〜 75 Ω F メス 整合パッド、DC 〜 3 GHz

製品ID: PE7071

数量別価格

数量単価
1-9¥30,593
10-24¥29,063
25-49¥27,534
50+Call

消費税込単価
数量:
在庫数:375
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector In SeriesN
Connector In GenderMale
Connector In Impedance50 Ohm
Connector Out SeriesF
Connector Out GenderFemale
Connector Out Impedence75 Ohm
Minimum FrequencyDC
Maximum Frequency3 GHz
Maximum VSWR1.25:1
Maximum Attenuation5.7 dB

Description

50 Ohm N Male To 75 Ohm F Female Matching Pad Operating From DC to 3 GHz RoHS Compliant

RF impedance matching pad (also referred to as coaxial matching pad) PE7071 from Pasternack has N connector in and is 50 Ohm, F connector out and is 75 Ohm. This coaxial N to F impedance matching pad has a male N in and a female F out. Our 50 Ohm N to 75 Ohm F impedance matching pad is manufactured with a minimum frequency of DC and a maximum frequency of 3 GHz.

This radio frequency 50 Ohm N male to 75 Ohm F female RF impedance matching pad design has a maximum attenuation of 5.7 and an attenuation accuracy of 0.5 dB. Body material of the 50 Ohm to 75 Ohm N To F matching pad is passivated stainless steel.

50 Ohm N male to 75 Ohm F female RF impedance pad PE7071 from Pasternack is rated for a maximum VSWR of 1.25:1 and a maximum input power of 2 Watts. This matching pad is just part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This impedance matching pad with N to F connectors is in-stock and Pasternack is where to buy your RF components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
