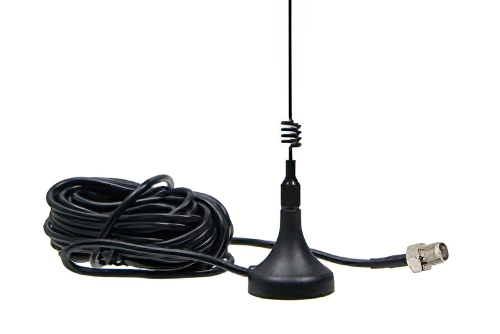

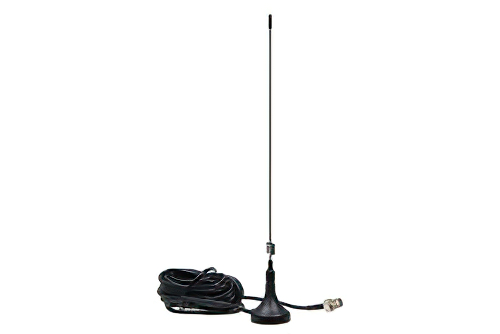

デュアルバンド マグネチックマウント アンテナ、10フィートのRG174A/U 同軸ケーブル付き, SMAメス, 880-965 MHz | 1710-2170 MHz, 3dBi

製品ID: PE51113-1

数量別価格

数量単価
1-24¥13,984
25-49¥13,285
50-99¥12,586
100-249¥12,026
250+Call

消費税込単価
数量:
在庫数:22
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypeMobile
PolarizationVertical
Minimum Frequency880 MHz
Maximum Frequency2.17 GHz
Connector SeriesSMA
Connector GenderFemale
Impedance50 Ohm
Nominal Gain3 dB
Maximum Input VSWR2:1

Description

Mobile Dual Band Antenna Operates From 880 MHz to 2.17 GHz With a Nominal 3 dBi Gain SMA Female Input Connector

Mobile antenna PE51113-1 from Pasternack is part of our extensive in-stock omni-directional radio antenna selection. This dual band mobile antenna has a frequency range of 880 MHz to 965 MHz, 1.71 GHz to 2.17 GHz and a 3 nominal dBi gain. Our mobile antenna uses SMA input and is rated for 50 Watts input.

PE51113-1 mobile radio antenna is one of over 40,000 RF, microwave and millimeter wave components supplied from Pasternack. Our mobile aerial can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
