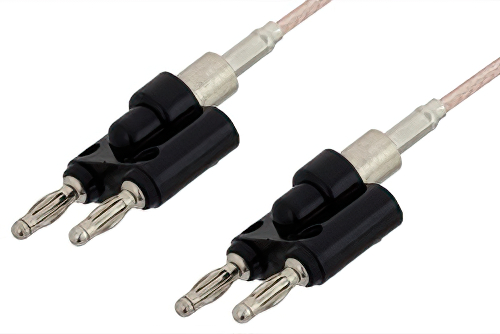

バナナプラグ〜バナナプラグケーブル、RG316-DS 同軸

製品ID: PE34604

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	Banana
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Series 2	Banana
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45164	RG316-DS	PE45164	KitBOM Datasheet

Banana Plug to Banana Plug Cable Using RG316-DS Coax

PE34604 is a Banana plug to Banana plug cable using RG316-DS coax. This Pasternack Banana plug to Banana plug cable assembly uses a Banana for connector 1 and a Banana for connector 2.

Our plug Banana to plug Banana cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34604 Banana plug to Banana plug cable assembly is constructed with RG316-DS coax.
