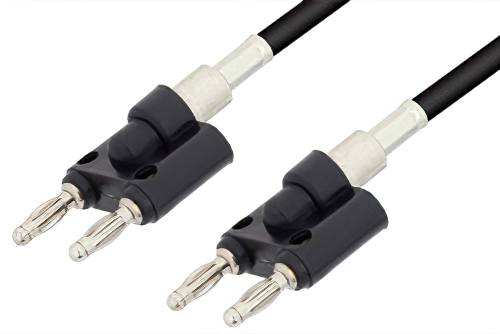

バナナプラグ〜バナナプラグケーブル、RG58 同軸

製品ID: PE3005

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	Banana
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	0 Ohm
Connector Series 2	Banana
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	0 Ohm
RF Cable Part Number	RG58C/U
RF Cable Type	RG58
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4301	RG58C/U	PE4301	KitBOM Datasheet

Banana Plug to Banana Plug Cable Using RG58 Coax

PE3005 is a Banana plug to Banana plug cable using RG58 coax. This Pasternack Banana plug to Banana plug cable assembly uses a 0 Ohm Banana for connector 1 and a 0 Ohm Banana for connector 2.

Our plug Banana to plug Banana cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3005 Banana plug to Banana plug cable assembly is constructed with RG58 coax.
