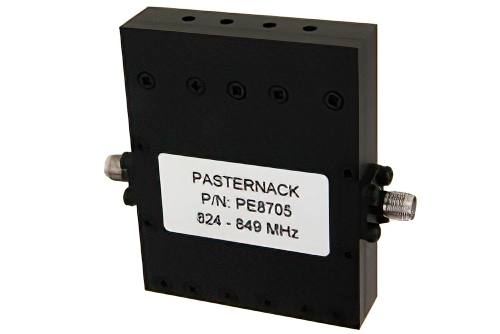

バンドパスフィルタ, GSM, 824 TO 849 MHZ

製品ID: PE8705

数量別価格

数量単価
1-9¥145,325
10-24¥138,059
25-49¥130,793
50+Call

消費税込単価
数量:
在庫数:6
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
BandsGSM
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency824 MHz
Bandpass Max Frequency849 MHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1.5 dB
Maximum Power5 Watts

Description

4 Section Bandpass Filter With SMA Female Connectors Operating From 824 MHz To 849 MHz With a 25 MHz Passband

GSM bandpass filter PE8705 from Pasternack is part of our extensive in-stock RF components for sale. Our GSM band pass filter is manufactured with SMA connectors that are female and in a 4 section design. This 4 section SMA bandpass filter for GSM has an insertion loss of 1.500 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 824 MHz to 849 MHz and the passband is 25 MHz. PE8705 bandpass filter for GSM band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 4 section GSM bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
