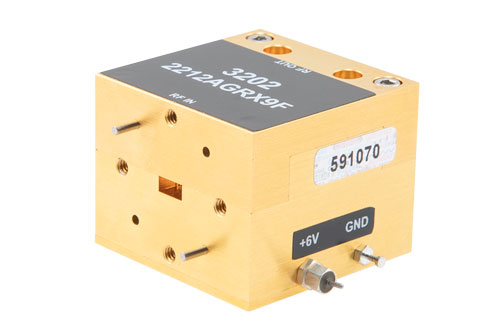

PEWGA3202 by Pasternack is a mid-power Waveguide Low Noise Amplifier (LNA) with a frequency band of Q eligible for same day shipping worldwide. This WR-22 high frequency (HF) waveguide LNA operates between the frequencies of 33 GHz – 50 GHz with a typical gain of 32 dB. The PEWGA3202 Q band LNA operates between -40 deg C to 80 deg C. Pasternack's 33 GHz – 50 GHz low noise amplifiers have a maximum noise figure of only dB and a typical gain of 32 dB.
The waveguide WR-22 low noise dB amp has a max 8 Vdc integrated voltage regulation with 650 mA of typical operating Vdc current. This high reliability Q band LNA maintains 32 dB of gain, and an exceptionally low dB figure of noise; it's design is unconditionally stable, exhibiting an impressive 20.5 dBm of saturated power output (Psat). This HF LNA PEWGA3202 expresses a max 8 Vdc of voltage supply with 20.5 dBm of typical power output and it's Q-band low noise figure amplification is designed for use in military, labs, telecom infrastructure, and even space applications. Contact Pasternack's knowledgeable support staff for assistance with this 50 GHz Q-band frequency, dB noise figure WR-22 amplifier.
Download our UG-383/U RF LNA PDF datasheet PEWGA3202 with specifications and our CAD drawing of the of this dB waveguide low noise UG-383/U amplifier with dimensions for details. The 650 mA WR-22 high frequency LNA is built to be sturdy and is designed for dozens of applications with its WR-22 I/O waveguide ports for UG-383/U waveguide flanges. Our 650 mA aluminum waveguide LNA's dimensions and size specifications: 1.5 inches long, 1.2 inches tall, 1.5 inches wide, and weight of 0.2 lbs. Order your resilient, high-reliability 33 GHz 50 GHz low noise amplifiers today, through the website or by phone; we're ready to pack and ship these high-quality low noise 650 mA WR-22 waveguide amplifier LNA's anywhere in the world.
This low noise 650 mA RF amplifier is ready for same day purchase and is complete with a maximum noise figure no more than dB. Pasternack's PEWGA3202 waveguide HF LNA is housed within aluminum and plated with gold, which makes for a sturdy and reliable unit. This 33 GHz – 50 GHz Q band LNA with 20.5 dBm power is part of over 100,000 RF, microwave, and millimeter wave components that we keep in stock. Pasternack stocks a wide array of small 32 dB signal low noise amplifier products that ship same day from our warehouse for all your RF, microwave, and millimeter wave WR-22 LNA needs.
