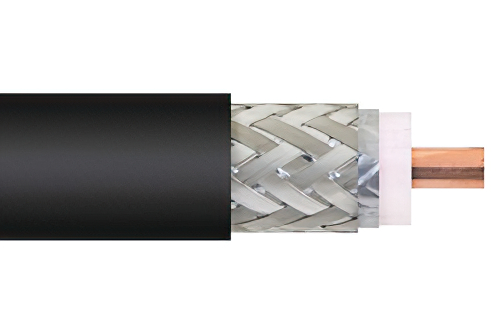

低ロス フレキシブル 同軸ケーブル 0.500 インチ外径 ダブルシールド PE 被覆

製品ID: PE-C500
在庫限りで供給終了
代替品PE-C500-BULK.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic Name.500 inch Foam Dielectric Type
Flex TypeFlexible
Impedance50 Ohm
Dielectric TypePE (F)
Velocity of Propagation86 %
Jacket Diameter0.5 in
Jacket MaterialPE
No. of Shields2
Attenuation at 1 Ghz.3.5 dB
Power, Max at 1 Ghz.720 Watts
RF Shielding90 dB
Frequency, Max6 GHz
Max Operating Temperature85 deg C
Center Conductor TypeSolid
Inner Conductor, Number of Strands1
Coax TypeCoax

Description

Low Loss Flexible .500 inch Foam Dielectric Type Coax Cable Double Shielded with Black PE Jacket

PE-C500 part number from Pasternack is a .500 inch Foam Dielectric Type coax cable that is flexible. Pasternack PE-C500 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-C500 coax is constructed with a 0.5 jacket made of PE. PE-C500 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 6 GHz. PE-C500 coax cable has an attenuation at 1 GHz of 3.5 dB and a maximum power of 720 watts at 1 GHz.

Pasternack .500 inch Foam Dielectric Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-C500 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-C500 or other coax can be built and shipped same day as well.
