同軸ケーブル

Name: 同軸ケーブル
Brand: Pasternack
SKU: PE-SR401AL

製品ID: PE-SR401AL

終息品

代替品PE-SR401AL-STRAIGHT.

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic Name	250 Semi-rigid
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	69.5 %
No. of Shields	1
Attenuation at 1 Ghz.	7.5 dB
Power, Max at 1 Ghz.	661 Watts
Frequency, Max	18 GHz
Max Operating Temperature	100 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, Repeated	0.75 in
Coax Type	Coax

Description

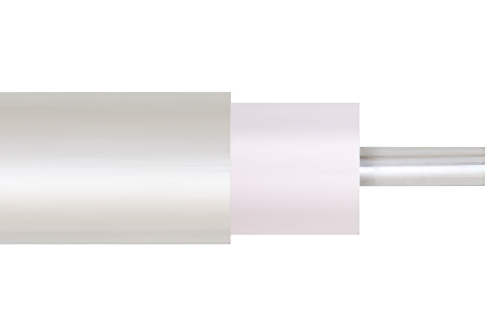

250 Semi-rigid Coax Cable with Tinned Aluminum Outer Conductor

PE-SR401AL part number from Pasternack is a 250 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR401AL semi-rigid coax cable is 50 Ohm and has a PTFE dielectric.PE-SR401AL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 18 GHz. PE-SR401AL coax cable has an attenuation at 1 GHz of 7.5 dB and a maximum power of 661 watts at 1 GHz.

Pasternack 250 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR401AL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR401AL or other coax can be built and shipped same day as well.
