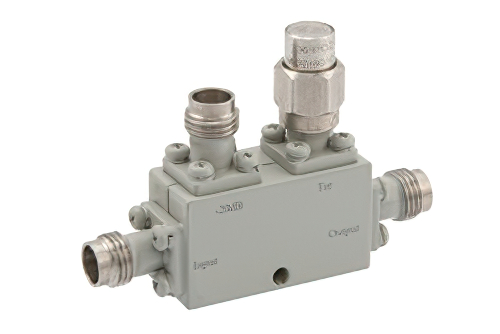

RF coupler part number PE2CP1135-20 from Pasternack is one of over 40,000 RF components available for same day shipping worldwide. This RF coupler is directional and is manufactured with 2.4mm ports. Our directional coupler design uses 2.4mm ports that are female gender and 50 Ohm impedance.
The Pasternack directional coupler design is rated for a minimum frequency of 18 GHz and a maximum frequency of 50 GHz. Directional coupler part # PE2CP1135-20 is constructed with a coupling value of 20 dB and a coupler directivity of 8 dB. This female 2.4mm directional coupler is built with a maximum insertion loss of 1.2 dB and a maximum input power of 20 watts.
Our directional coupler design with 2.4mm connector is rated for a maximum insertion loss of 1.2 dB and a maximum VSWR of 2. Additional female 2.4mm coupler specs for this RF component can be found on its radio frequency directional coupler PDF specifications datasheet above. PE2CP1135-20 directional 20 dB 2.4mm coupler is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack and it can be bought and then shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
