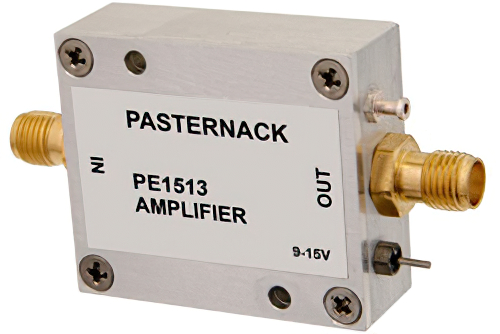

13 dBm P1dB、10 MHz から 3 GHz、ゲインブロック増幅器、20 dB ゲイン、2.7 dB NF、SMA

Name: 13 dBm P1dB、10 MHz から 3 GHz、ゲインブロック増幅器、20 dB ゲイン、2.7 dB NF、SMA
Brand: Pasternack
SKU: PE1513

製品ID: PE1513

終息品

ゲインブロックアンプより類似品をご覧いただくか、お問い合わせください.

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output	13 dBm P1dB
Frequency, Min	10 MHz
Frequency, Max	3 GHz
Gain	20 dB
Noise Figure, Max	2.7 dB
Noise Figure, Typ	2.7 dB
Voltage, DC Min	9 Volts
Voltage, DC Max	15 Volts
Connector Series	SMA

Description

13 dBm P1dB, 10 MHz to 3 GHz, Gain Block Amplifier, 20 dB Gain, 2.7 dB NF, SMA

PE1513 RF gain block amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized gain block RF amplifier uses SMA connectors. This SMA gain block amplifier has a minimum frequency of 10 MHz, a maximum frequency of 3 GHz and a typical gain of 20 dB.

Our radio frequency gain block amp PE1513 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial gain block amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
