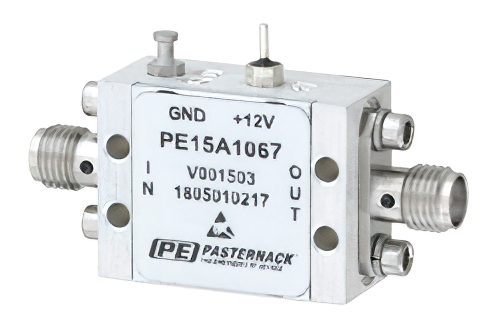

0.7 dB NF 低ノイズ増幅器、動作範囲 700 MHz 〜 2.7 GHz、23 dB ゲイン、21 dBm Psat、SMA

Name: 0.7 dB NF 低ノイズ増幅器、動作範囲 700 MHz 〜 2.7 GHz、23 dB ゲイン、21 dBm Psat、SMA
Brand: Pasternack
SKU: PE15A1067

製品ID: PE15A1067

数量別価格

数量	単価
1-4	¥274,091
5-9	¥263,127
10-24	¥252,164
25+	Call

消費税込単価

数量:

在庫数:1

消費税込単価

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Gain	23 dB
Power Output	21 dBm Psat
Frequency, Min	700 MHz
Frequency, Max	2.7 GHz
Noise Figure, Max	0.9 dB
Design	Low Noise
Voltage, DC Max	15 Volts
Current, DC Max	75 mA
Connector Series	SMA

Description

0.7 dB NF Low Noise Amplifier, Operating from 700 MHz to 2.7 GHz with 23 dB Gain, 21 dBm Psat and SMA

PE15A1067 low noise amplifier from Pasternack (also known as LNA) is featured in our extensive in-stock RF amplifier selection. Our connectorized low noise amplifier uses SMA connectors at 50 Ohm. This SMA low noise amplifier has a minimum frequency of 700 MHz and maximum frequency of 2.7 GHz. The significantly low noise figure of this radio frequency amplifier is 0.9 dB with a typical gain of 23 dB.

LNA amplifier PE15A1067 is rated at 15 Volts DC maximum and 75 mA. Our low noise radio frequency LNA amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial millimeter wave low noise amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
