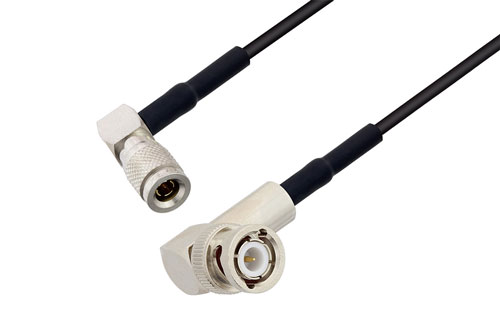

Radio frequency assembly 1.0/2.3 plug right angle to BNC male right angle low loss cable using LMR-100 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The 1.0/2.3 plug right angle to BNC male right angle low loss cable using LMR-100 coax with heatshrink, 1.0/2.3 cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 1.0/2.3 to BNC cable assembly orders will ship same day as well.
Pasternack RF coax low loss cable assembly is built with right angle 1.0/2.3 cable connection on one end and right angle BNC cable connection on the other. Our low loss right angle 1.0/2.3 to right angle BNC cable assemblies have a plug gender on end 1 and male on end 2. PE3W09154/HS can also be known as a low loss right angle 1.0/2.3 male to right angle BNC plug cable assembly and will be shipped same-day as it is purchased.
1.0/2.3 male to BNC plug cable assembly PE3W09154/HS is built with LMR-100A which is a flexible coax type. The Pasternack flexible 1.0/2.3 cable assembly is manufactured with right angle 1.0/2.3 to right angle BNC cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 4 GHz maximum frequency 1.0/2.3 right angle plug to BNC right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W09154/HS can also be used in the other direction and will be right angle BNC male to right angle 1.0/2.3 plug cable assembly if the opposite connectivity is required.
Low loss 1.0/2.3 right angle male to BNC right angle plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality 1.0/2.3 to BNC cable assembly for quick shipment worldwide. Variations of 1.0/2.3 cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this 1.0/2.3 plug right angle to BNC male right angle low loss cable using LMR-100 coax with heatshrink.
