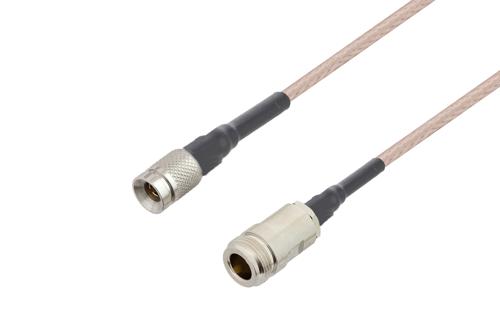

1.0/2.3 プラグ～ N メス, ケーブル RG316 同軸, 熱収縮チューブ

製品ID: PE3W12269/HS

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	1.0/2.3
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316/U
RF Cable Type	RG316
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44244	RG316/U	PE4438	KitBOM Datasheet

1.0/2.3 Plug to N Female Cable Using RG316 Coax with HeatShrink

PE3W12269/HS is a 1.0/2.3 plug to N female cable using RG316 coax. This Pasternack 1.0/2.3 plug to N female cable assembly uses a 50 Ohm 1.0/2.3 for connector 1 and a 50 Ohm N for connector 2.

Our plug 1.0/2.3 to female N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W12269/HS 1.0/2.3 plug to N female cable assembly is constructed with RG316 coax.
