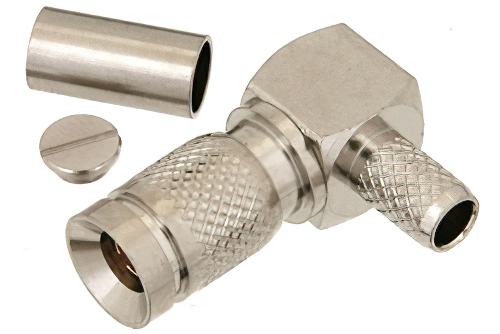

1.0/2.3 プラグ 直角コネクタ、圧着/はんだ接続、RG58、RG303、RG141、PE-C195、PE-P195、LMR-195、.195インチ

製品ID: PE44248

数量別価格

数量単価
1-24¥4,369
25-49¥4,151
50-99¥3,932
100-249¥3,757
250+Call

消費税込単価
数量:
在庫数:2,286
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series1.0/2.3
Connector GenderPlug
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Interface Type 1RG58
Interface Type 2RG303
Interface Type 3RG141
Interface Type 4PE-C195
Interface Type 5PE-P195
Interface Type 6LMR-195
Interface Type 7.195 inch

Description

1.0/2.3 Plug Right Angle Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

PE44248 1.0/2.3 plug right angle coaxial connector has an interface type of RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, .195 inch and a 50 Ohm impedance. Pasternack 1.0/2.3 plug connector uses shield/contact crimp/solder as an attachment method.

The Pasternack right angle 1.0/2.3 plug coaxial connector has a PTFE dielectric type. The Pasternack 1.0/2.3 coaxial connector has a brass body with nickel plating. This 1.0/2.3 plug right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle plug 1.0/2.3 connector will ship the same day as purchased. Our 1.0/2.3 right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.

*LMR™ is a Trademark of Times Microwave
