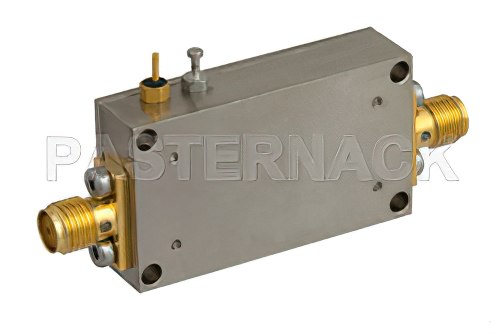

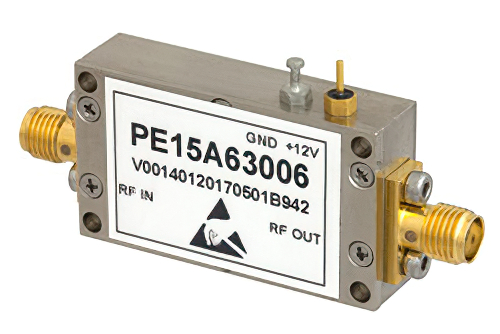

1.2 dB NF、10 dBm P1dB、1 GHz 〜 1.4 GHz、低ノイズ増幅器、30 dB ゲイン、SMA

製品ID: PE15A63006

数量別価格

数量単価
1-4¥50,664
5-9¥48,637
10-24¥46,611
25+Call

消費税込単価
数量:
在庫数:1
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Gain30 dB
Power Output10 dBm P1dB
Frequency, Min1 GHz
Frequency, Max1.4 GHz
Noise Figure, Max1.4 dB
DesignInput Protected Low Noise
Connector SeriesSMA

Description

1.2 dB NF Input Protected Low Noise Amplifier, Operating from 1 GHz to 1.4 GHz with 30 dB Gain, 10 dBm P1dB and SMA

PE15A63006 input protected low noise amplifier from Pasternack (also known as LNA) is featured in our extensive in-stock RF amplifier selection. Our connectorized input protected low noise amplifier uses SMA connectors at 50 Ohm. This SMA input protected low noise amplifier has a minimum frequency of 1 GHz and maximum frequency of 1.4 GHz. The significantly low noise figure of this radio frequency amplifier is 1.4 dB with a typical gain of 30 dB.

input protected LNA amplifier PE15A63006 is rated at Volts DC maximum and mA. Our input protected low noise radio frequency LNA amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial millimeter wave input protected low noise amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
