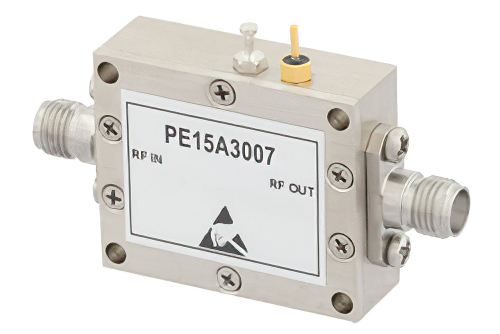

600 mW Psat、100 MHz 〜 12 GHz、中電力広帯域増幅器、18 dB ゲイン、33 dBm IP3、3 dB NF、SMA

Name: 600 mW Psat、100 MHz 〜 12 GHz、中電力広帯域増幅器、18 dB ゲイン、33 dBm IP3、3 dB NF、SMA
Brand: Pasternack
SKU: PE15A3007

製品ID: PE15A3007

数量別価格

数量	単価
1-4	¥525,141
5-9	¥504,135
10-24	¥483,130
25+	Call

消費税込単価

数量:

お問い合わせください

消費税込単価

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output	28 dBm Psat
Frequency, Min	100 MHz
Frequency, Max	12 GHz
Gain, Min	16 dB
Gain, Typical	18 dB
Gain Flatness	1 dB
Noise Figure, Max	5 dB
3rd Intercept Point	33 dB
RF Input VSWR Max	1.8:1
RF Output VSWR Max	2:1
Connector Series	SMA

Description

600 mW Psat, 100 MHz to 12 GHz, Medium Power Broadband Amplifier, 18 dB Gain, 33 dBm IP3, 3 dB NF, SMA

PE15A3007 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 100 MHz and maximum frequency of 12 GHz. The minimum gain of this broad-band radio frequency amplifier is 16 dB with a typical gain of 18 dB.

Pasternack broadband amplifier PE15A3007 is rated at 28 dBm Psat, 1.8:1 input VSWR maximum and 2:1 output VSWR max. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
