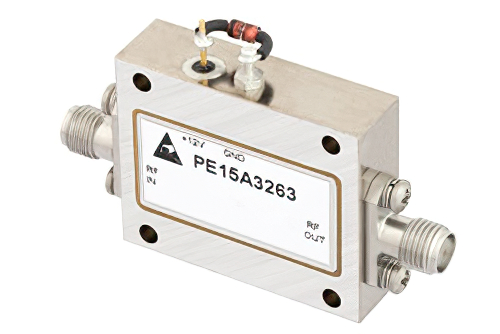

15 dBm P1dB、500 MHz 〜 18 GHz、中電力広帯域増幅器、33 dB ゲイン、4 dB NF、SMA

Name: 15 dBm P1dB、500 MHz 〜 18 GHz、中電力広帯域増幅器、33 dB ゲイン、4 dB NF、SMA
Brand: Pasternack
SKU: PE15A3263

製品ID: PE15A3263

数量別価格

数量	単価
1-4	¥875,234
5-9	¥840,225
10-24	¥805,215
25+	Call

消費税込単価

数量:

在庫数:5

消費税込単価

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output	15 dBm P1dB
Frequency, Min	500 MHz
Frequency, Max	18 GHz
Gain, Min	30 dB
Gain, Typical	33 dB
Connector Series	SMA

Description

15 dBm P1dB, 500 MHz to 18 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 4 dB NF, SMA

PE15A3263 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 500 MHz and maximum frequency of 18 GHz. The minimum gain of this broad-band radio frequency amplifier is 30 dB with a typical gain of 33 dB.

Pasternack broadband amplifier PE15A3263 is rated at 15 dBm P1dB. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
