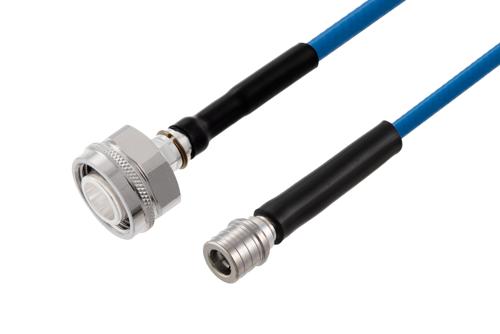

2.2-5 オス～ QMA オス低 PIM, ケーブル TFT-402-LF 同軸 , 鉛フリーはんだ

製品ID: PE3W13490LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	2.2-5
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	QMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	TFT-402-LF
RF Cable Type	TFT-402-LF
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


TC-402-225M-LP	TFT-402-LF	TC-402-QM-LP	KitBOM Datasheet

2.2-5 Male to QMA Male Cable Using TFT-402-LF Coax, LF Solder

PE3W13490LF is a 2.2-5 male to QMA male cable using TFT-402-LF coax. This Pasternack 2.2-5 male to QMA male cable assembly uses a 50 Ohm 2.2-5 for connector 1 and a 50 Ohm QMA for connector 2.

Our male 2.2-5 to male QMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W13490LF 2.2-5 male to QMA male cable assembly is constructed with TFT-402-LF coax.
