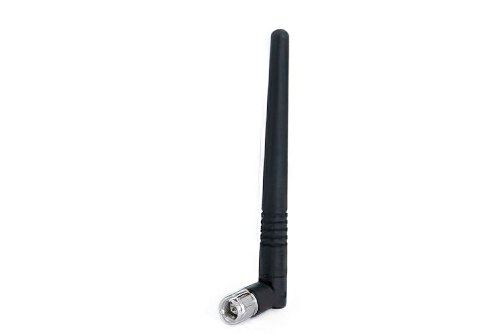

2.4 GHz ポータブルラバーダックアンテナ; SMAプラグ; 2400 - 2483.5 MHZ

製品ID: PE51018

数量別価格

数量単価
1-24¥10,148
25-49¥9,641
50-99¥9,133
100-249¥8,727
250+Call

消費税込単価
数量:
在庫数:21
在庫限りで供給終了
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypePortable
PolarizationLinear
Minimum Frequency2.4 GHz
Maximum Frequency2.4835 GHz
Connector SeriesSMA
Connector GenderMale
Impedance50 Ohm
Nominal Gain2 dB
Maximum Input VSWR1.5:1

Description

Rubber Duck Portable Antenna Operates From 2.4 GHz to 2.4835 GHz With a Nominal 2 dBi Gain SMA Male Input Connector

Rubber duck portable antenna PE51018 from Pasternack (also known as a rubber ducky antenna) is part of our extensive in-stock omni-directional radio antenna selection. This single band rubber duck portable antenna has a frequency range of 2.4 GHz to 2.4835 GHz and a 2 nominal dBi gain. Our portable rubber duck antenna uses SMA male connector and is rated for 50 Watts input.

PE51018 rubber duck portable radio antenna is one of over 40,000 RF, microwave and millimeter wave components supplied from Pasternack. Our portable rubber duck aerial can be bought and shipped worldwide the same-day as with our other available RF parts.
