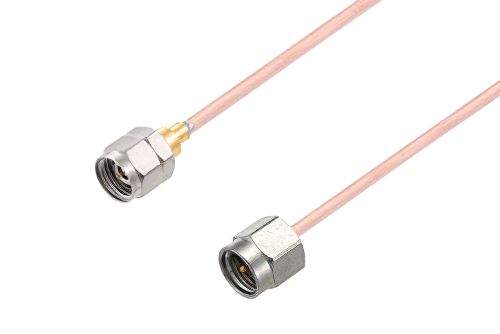

2.4mm オス〜 SMA オスケーブル、RG405 同軸

製品ID: PE3W08574

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	2.4mm
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG405/U
RF Cable Type	RG405
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45414	RG405/U	PE45480	KitBOM Datasheet

2.4mm Male to SMA Male Cable Using RG405 Coax

PE3W08574 is a 2.4mm male to SMA male cable using RG405 coax. This Pasternack 2.4mm male to SMA male cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm SMA for connector 2.

Our male 2.4mm to male SMA cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3W08574 2.4mm male to SMA male cable assembly is constructed with RG405 coax.
