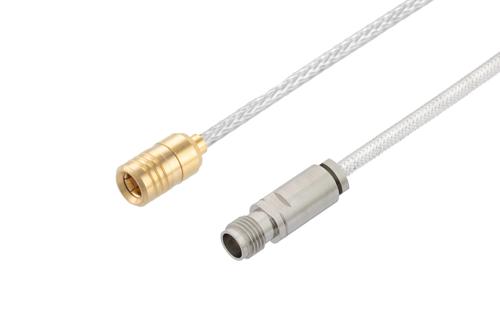

2.4mm メス～ SMB プラグ, ケーブル PE-SR405FL 同軸

製品ID: PE3W14582

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	2.4mm
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMB
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-SR405FL
RF Cable Type	PE-SR405FL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44216	PE-SR405FL	PE4356	KitBOM Datasheet

2.4mm Female to SMB Plug Cable Using PE-SR405FL Coax

PE3W14582 is a 2.4mm female to SMB plug cable using PE-SR405FL coax. This Pasternack 2.4mm female to SMB plug cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm SMB for connector 2.

Our female 2.4mm to plug SMB cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W14582 2.4mm female to SMB plug cable assembly is constructed with PE-SR405FL coax.
