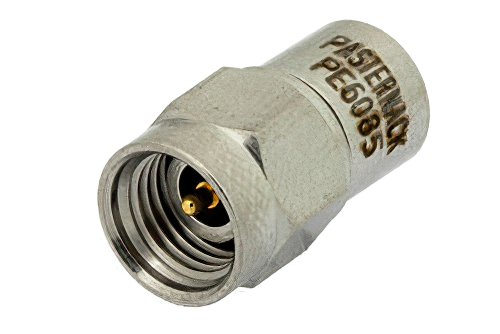

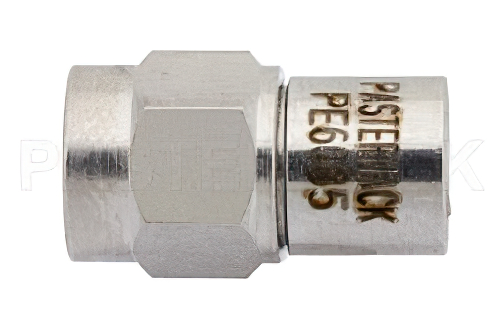

0.5 W RF ロード最大 40 GHz、2.92mm オス、防錆処理ステンレス鋼

製品ID: PE6085

数量別価格

数量単価
1-9¥86,100
10-24¥81,795
25-49¥77,490
50+Call

消費税込単価
数量:
在庫数:78
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector Series2.92mm
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum VSWR1.2:1
Maximum Power0.5 Watt

Description

0.5 Watt RF Load Up to 40 GHz with 2.92mm Male Passivated Stainless Steel

PE6085 0.5 Watts RF load (also known as termination or dummy load) has a 2.92mm connector that is male. This Pasternack 0.5 watt 2.92mm male load / termination is rated for a maximum frequency of 40 GHz. Our 2.92mm male termination load is a rf load termination with a 50 Ohm impedance.

This 2.92mm load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm 2.92mm coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.2:1. PE6085 0.5 watt 2.92mm male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 2.92mm male 0.5 watt termination load will ship worldwide the same day as purchased.
