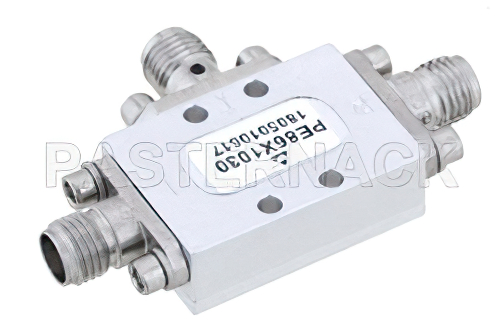

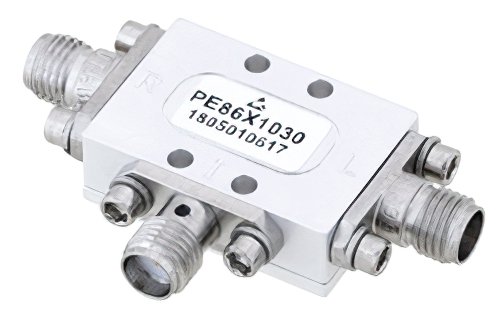

ダブルバランスミキサ、動作範囲 16 GHz 〜 30 GHz、IF範囲 DC 〜 8 GHz、LO パワー +13 dBm、2.92mm

製品ID: PE86X1030

数量別価格

数量単価
1-1¥408,658
2-4¥392,312
5-9¥375,965
10+Call

消費税込単価
数量:
在庫数:1
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
RF Connector Series2.92mm
RF Connector GenderFemale
LO Connector Series2.92mm
LO Connector GenderFemale
IF Connector SeriesSMA
IF Connector GenderFemale
RF Minimum Frequency16 GHz
RF Maximum Frequency30 GHz
LO Minimum Frequency16 GHz
LO Maximum Frequency30 GHz
IF Minimum FrequencyDC
IF Maximum Frequency8 GHz

Description

Double Balanced Mixer Operating from 16 GHz to 30 GHz with an IF Range from DC to 8 GHz and LO Power of +13 dBm, 2.92mm

RF double balanced mixer (also referred to as a frequency mixer) PE86X1030 from Pasternack has 2.92mm connector. This 2.92mm double balanced mixer is manufactured with a impedance and has a RF to LO isolation of 32 dB.

This radio frequency double balanced mixer has a RF frequency range of 16 GHz for the minimum and 30 GHz for the maximum. PE86X1030 double balanced frequency mixer LO frequency range is 16 GHz for the minimum and 30 GHz for the maximum. Our frequency mixer that is double balanced has an IF frequency range of DC for a minimum and 8 GHz for a maximum.

Double balanced mixer from Pasternack is rated for a third order intercept point of 18 dBm. This 50 Ohm 2.92mm double balanced frequency mixer is part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our double balanced mixer is in-stock and Pasternack is where to buy your RF mixer components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
