低 PIM 4.3-10 メス 〜 N メス アダプタ

製品ID: PE91475

数量別価格

数量単価
1-24¥12,846
25-49¥12,204
50-99¥11,561
100-249¥11,048
250+Call

消費税込単価
数量:
在庫数:26
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 14.3-10
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max6 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Tri-Metal
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Tri-Metal

Description

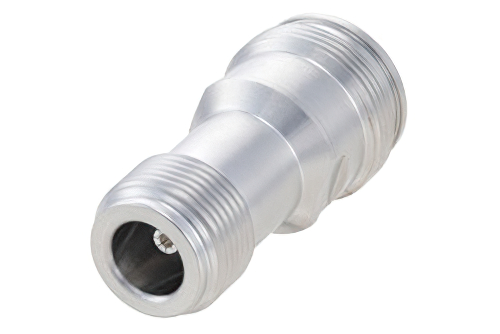

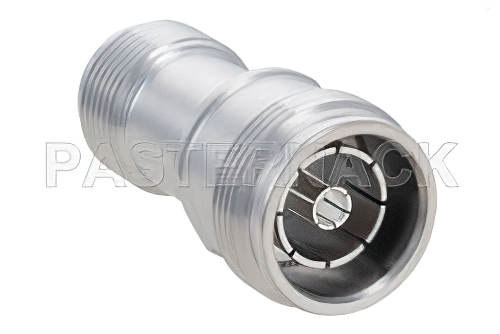

Low PIM 4.3-10 Female to N Female Adapter

4.3-10 adapter PE91475 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our 4.3-10 to type N adapter is a between series coaxial adapter design. This 50 Ohm 4.3-10 adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.

4.3-10 female to type N female adapter is one of the many RF components that ship same day as they are ordered. PE91475 female 4.3-10 to female N type adapter has a straight body. This Pasternack straight 4.3-10 coax adapter is a in-line RF adapter.

Our female 4.3-10 to female type N adapter PE91475 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This 4.3-10 to type N radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
