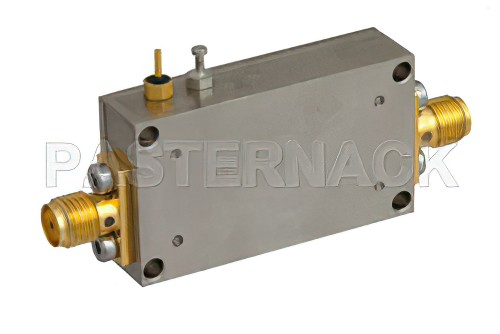

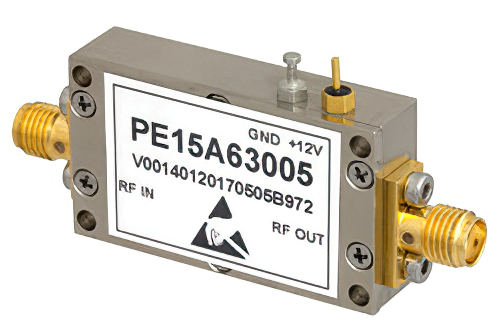

40 dB ゲイン、1.2 dB NF、10 dBm P1dB、900 MHz 〜 1.2 GHz、低ノイズ増幅器、SMA

製品ID: PE15A63005

数量別価格

数量単価
1-4¥178,105
5-9¥170,981
10-24¥163,857
25+Call

消費税込単価
数量:
在庫数:1
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Gain40 dB
Power Output10 dBm P1dB
Frequency, Min900 MHz
Frequency, Max1.2 GHz
Noise Figure, Max1.4 dB
DesignInput Protected Low Noise
Connector SeriesSMA

Description

1.2 dB NF Input Protected Low Noise Amplifier, Operating from 900 MHz to 1.2 GHz with 40 dB Gain, 10 dBm P1dB and SMA

PE15A63005 input protected low noise amplifier from Pasternack (also known as LNA) is featured in our extensive in-stock RF amplifier selection. Our connectorized input protected low noise amplifier uses SMA connectors at 50 Ohm. This SMA input protected low noise amplifier has a minimum frequency of 900 MHz and maximum frequency of 1.2 GHz. The significantly low noise figure of this radio frequency amplifier is 1.4 dB with a typical gain of 40 dB.

input protected LNA amplifier PE15A63005 is rated at Volts DC maximum and mA. Our input protected low noise radio frequency LNA amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial millimeter wave input protected low noise amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
