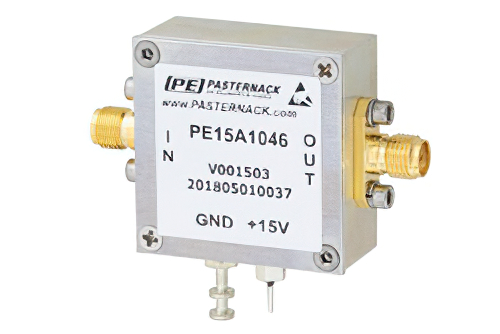

2.5 dB NF 低ノイズ増幅器、動作範囲 0.01 MHz 〜 500 MHz、45 dB ゲイン、11 dBm P1dB、SMA

Name: 2.5 dB NF 低ノイズ増幅器、動作範囲 0.01 MHz 〜 500 MHz、45 dB ゲイン、11 dBm P1dB、SMA
Brand: Pasternack
SKU: PE15A1046

製品ID: PE15A1046

数量別価格

価格: ¥123,663

消費税込単価

数量:

お問い合わせください

消費税込単価

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Gain	45 dB
Power Output	11 dBm P1dB
Frequency, Min	0.01 MHz
Frequency, Max	500 MHz
Noise Figure, Max	3 dB
Design	Low Noise
Voltage, DC Max	16 Volts
Current, DC Max	90 mA
Connector Series	SMA

Description

2.5 dB NF Low Noise Amplifier, Operating from 0.01 MHz to 500 MHz with 45 dB Gain, 11 dBm P1dB and SMA

PE15A1046 low noise amplifier from Pasternack (also known as LNA) is featured in our extensive in-stock RF amplifier selection. Our connectorized low noise amplifier uses SMA connectors at 50 Ohm. This SMA low noise amplifier has a minimum frequency of 0.01 MHz and maximum frequency of 500 MHz. The significantly low noise figure of this radio frequency amplifier is 3 dB with a typical gain of 45 dB.

LNA amplifier PE15A1046 is rated at 16 Volts DC maximum and 90 mA. Our low noise radio frequency LNA amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial millimeter wave low noise amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
