1 W RF ロード最大 40 GHz、2.92mm オス、防錆処理ステンレス鋼

製品ID: PE6173

数量別価格

数量単価
1-9¥81,730
10-24¥77,644
25-49¥73,557
50+Call

消費税込単価
数量:
在庫数:186
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector Series2.92mm
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power1 Watt

Description

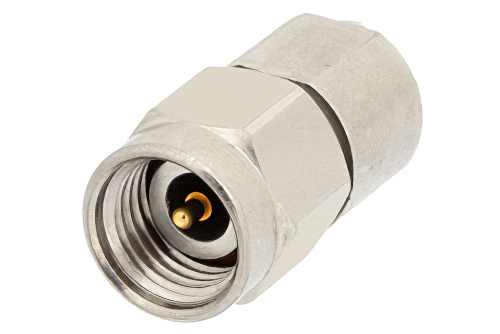

1 Watt RF Load Up to 40 GHz with 2.92mm Male Passivated Stainless Steel

PE6173 1 Watts RF load (also known as termination or dummy load) has a 2.92mm connector that is male. This Pasternack 1 watt 2.92mm male load / termination is rated for a maximum frequency of 40 GHz. Our 2.92mm male termination load is a rf load termination with a 50 Ohm impedance.

This 2.92mm load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm 2.92mm coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6173 1 watt 2.92mm male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 2.92mm male 1 watt termination load will ship worldwide the same day as purchased.
