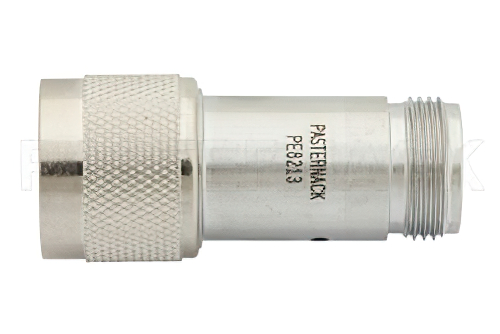

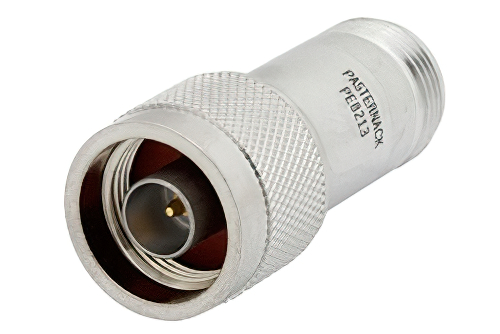

50 Ω D.C.ブロック NプラグからNジャック; 10 MHz - 18 GHz

製品ID: PE8213

数量別価格

数量単価
1-9¥42,831
10-24¥40,689
25-49¥38,548
50+Call

消費税込単価
数量:
在庫数:11
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Block TypeInner
Impedance50 Ohm
Connector In SeriesN
Connector In GenderMale
Connector Out SeriesN
Connector Out GenderFemale
Minimum Frequency10 MHz
Maximum Frequency18 GHz
Maximum VSWR1.35:1

Description

DC Block on Inner Conductor 50 Ohm N Male to N Female Operating From 10 MHz to 18 GHz

PE8213 is a coaxial RF DC block is from Pasternack and has an 50 Ohm impedance. Our 50 Ohm DC block is manufactured with a N input and N output. This N DC block is an inner direct current block type.

Pasternack inner N DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. PE8213 N inner DC block has a maximum insertion loss of 0.6 dB and a maximum VSWR of 1.35:1.

This inner N RF direct current block is just one of over 40,000 components for RF, microwave and millimeter wave applications supplied by Pasternack. Our coaxial DC block with N connectors is available to buy and be shipped globally the same day as with Pasternack's other RF parts in stock.
