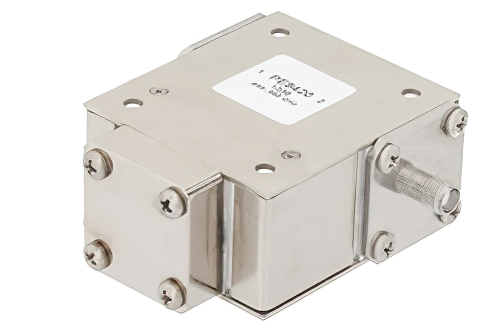

ハイパワーアイソレータ、18 dB アイソレーション、698 MHz 〜 960 MHz、1000 W、SMA メス

製品ID: PE8420

数量別価格

数量単価
1-9¥196,681
10-24¥188,814
25-49¥182,913
50+Call

消費税込単価
数量:
在庫数:28
消費税込単価

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector In SeriesSMA
Connector In GenderFemale
Connector Out SeriesSMA
Minimum Frequency698 MHz
Maximum Frequency960 MHz
Impedance50 Ohm
Maximum Insertion Loss0.35 dB
Maximum Input Power1,000 Watts
Minimum Isolation18 dB

Description

High Power Isolator With 18 dB Isolation From 698 MHz to 960 MHz, 1000 Watts And SMA Female

Pasternack RF isolator PE8420 is part of our extensive in-stock RF, microwave and millimeter wave components available for purchase. This RF isolator is manufactured with SMA connectors that are female. Our SMA isolator has a minimum frequency of 698 MHz and a maximum frequency of 960 MHz.

This SMA coaxial isolator has a minimum isolation of 18 dB and a maximum input power of 1000 Watts. PE8420 coaxial SMA isolator is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our radio frequency isolator can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
