50 Ω SHV ジャック～ 75 Ω F オスケーブル, 75 Ω RG59 同軸

製品ID: PE3W16800

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SHV
Connector Gender 1	Jack
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	F
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG59B/U
RF Cable Type	RG59
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45853	RG59B/U	PE44316	KitBOM Datasheet

50 Ohm SHV Jack to 75 Ohm F Male Cable Using 75 Ohm RG59 Coax

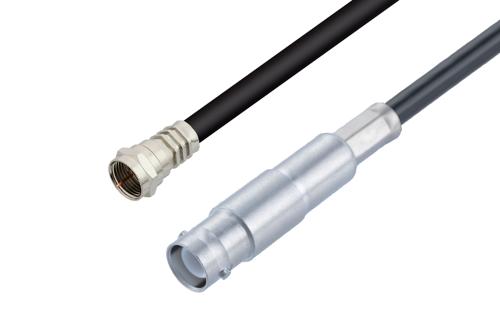

PE3W16800 is a SHV jack to F male cable using RG59 coax. This Pasternack SHV jack to F male cable assembly uses a 50 Ohm SHV for connector 1 and a 75 Ohm F for connector 2.

Our jack SHV to male F cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3W16800 SHV jack to F male cable assembly is constructed with RG59 coax.
