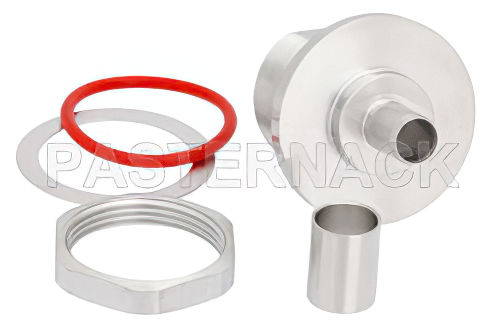

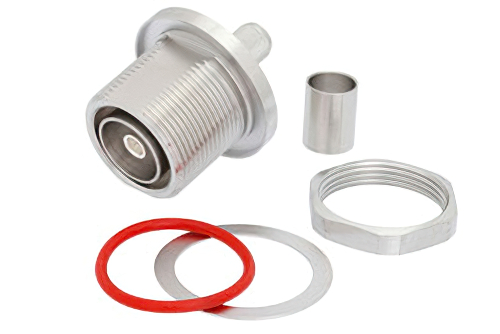

PE44550 7/16 DIN female bulkhead coaxial connector has an interface type of 7/16 DIN female .400 inch, LMR-400, LMR-400-DB, LMR-400-UF, PE-B405, PE-C400, PE-B400 and a 50 Ohm impedance.Our high quality PE44550 connector is designed for high voltage applications and is rated to 2700.000.Pasternack 7/16 DIN female bulkhead connector uses shield/contact crimp/non-solder contact as an attachment method. Our female 7/16 DIN coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.
The Pasternack 7/16 DIN female bulkhead coaxial connector has a VSWR of 1.15:1. The Pasternack 7/16 DIN coaxial connector has a brass body with tri-metal plating. Our PE44550 7/16 DIN connector uses spring copper contact material. This 7/16 DIN female bulkhead coaxial RF connector is RoHS and REACH compliant.
Pasternack 7/16 DINfemale connector has 2700.000 voltage rating. The radio frequency connector is made from brass along with a contact life of 500 cycles. The 7/16 DIN2700.000bulkhead connector has a PTFE dielectric type. Our high quality PE44550 features a 2 µm minimum body plating specification. We also build 7/16 DIN custom connector cable assemblies that will ship the same day as well.
Our bulkhead 7/16 DIN female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you to the perfect RF connector as per your requirement.
*LMR™ is a Trademark of Times Microwave
