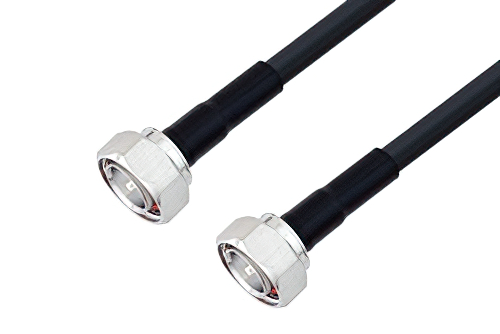

7/16 DIN オス〜 7/16 DIN オス、低損失ケーブル、LMR-400 同軸

製品ID: PE3W03530

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	7/16 DIN
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	7/16 DIN
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-400
RF Cable Type	LMR-400
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


EZ-400-716M-X	LMR-400	EZ-400-716M-X	KitBOM Datasheet

7/16 DIN Male to 7/16 DIN Male Cable Using LMR-400 Coax

PE3W03530 is a 7/16 DIN male to 7/16 DIN male cable using LMR-400 coax. This Pasternack 7/16 DIN male to 7/16 DIN male cable assembly uses a 50 Ohm 7/16 DIN for connector 1 and a 50 Ohm 7/16 DIN for connector 2.

Our male 7/16 DIN to male 7/16 DIN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03530 7/16 DIN male to 7/16 DIN male cable assembly is constructed with LMR-400 coax.

* LMR™ is a trademark of Times Microwave Systems.
