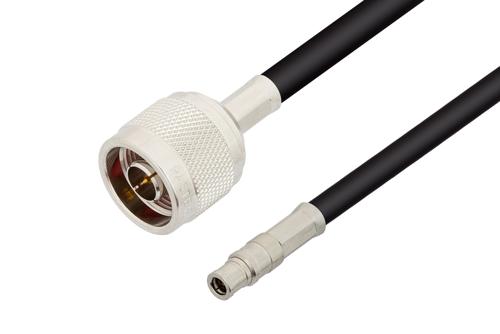

75 Ω Mini SMB プラグ～ 75 Ω N オスケーブル, 75 Ω RG59 同軸, 鉛フリーはんだ

製品ID: PE34808LF

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	Mini SMB
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	75 Ohm
Connector Series 2	N
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG59B/U
RF Cable Type	RG59
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4994	RG59B/U	PE4512	KitBOM Datasheet

75 Ohm Mini SMB Plug to 75 Ohm N Male Cable Using 75 Ohm RG59 Coax, LF Solder

PE34808LF is a Mini SMB plug to N male cable using RG59 coax. This Pasternack Mini SMB plug to N male cable assembly uses a 75 Ohm Mini SMB for connector 1 and a 75 Ohm N for connector 2.

Our plug Mini SMB to male N cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE34808LF Mini SMB plug to N male cable assembly is constructed with RG59 coax.
