N Male to N Male Cable Using SPP-375-LLPL Coax

製品ID: PE3W09999

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	SPP-375-LLPL
RF Cable Type	SPP-375-LLPL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


TC-375-NM-LP	SPP-375-LLPL	TC-375-NM-LP	KitBOM Datasheet

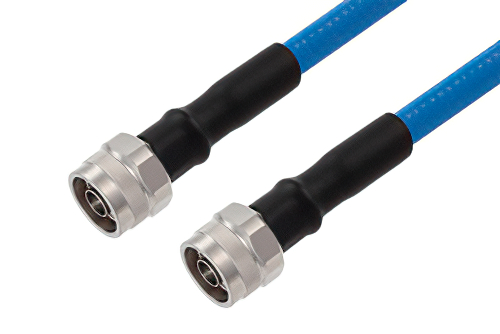

N Male to N Male Cable Using SPP-375-LLPL Coax

PE3W09999 is a N male to N male cable using SPP-375-LLPL coax. This Pasternack N male to N male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm N for connector 2.

Our male N to male N cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3W09999 N male to N male cable assembly is constructed with SPP-375-LLPL coax.
