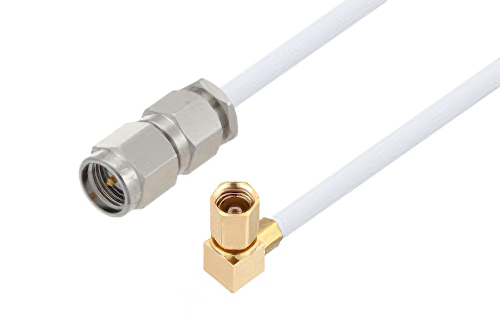

SMA Male to SSMC Plug Right Angle Cable Using RG188-DS Coax

製品ID: PE3W09943

長さ

標準長

*長さは0.25インチまたはcm単位で指定できます

終息品

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SSMC
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG188-DS
RF Cable Type	RG188-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4400	RG188-DS	PE45498	KitBOM Datasheet

SMA Male to SSMC Plug Right Angle Cable Using RG188-DS Coax

PE3W09943 is a SMA male to SSMC plug right angle cable using RG188-DS coax. This Pasternack SMA male to SSMC plug right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SSMC for connector 2. SMA to SSMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to plug SSMC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09943 SMA male to SSMC plug right angle cable assembly is constructed with RG188-DS coax.
