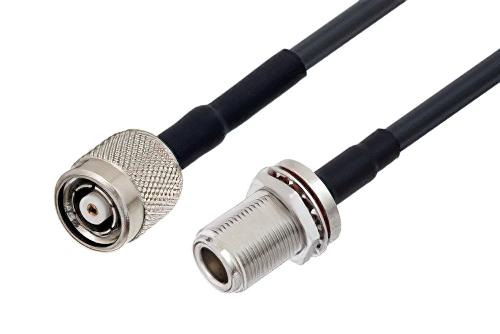

Reverse Polarity TNC Male to N Female Bulkhead Cable Using LMR-240 Coax

製品ID: PE3W09859

長さ

標準長

カスタム長

*長さは0.25インチまたはcm単位で指定できます

データ
シート

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	TNC
Connector Gender 1	Male
Connector Polarity 1	Reverse Polarity
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-240
RF Cable Type	LMR-240
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE44670	LMR-240	TC-240-NF-BH-X	KitBOM Datasheet

Reverse Polarity TNC Male to N Female Bulkhead Cable Using LMR-240 Coax

PE3W09859 is a reverse polarity TNC male to N female bulkhead cable using LMR-240 coax. This Pasternack reverse polarity TNC male to N female bulkhead cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm N for connector 2.

Our reverse polarity male TNC to female N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W09859 TNC reverse polarity male to N female bulkhead cable assembly is constructed with LMR-240 coax.

* LMR™ is a trademark of Times Microwave Systems.
